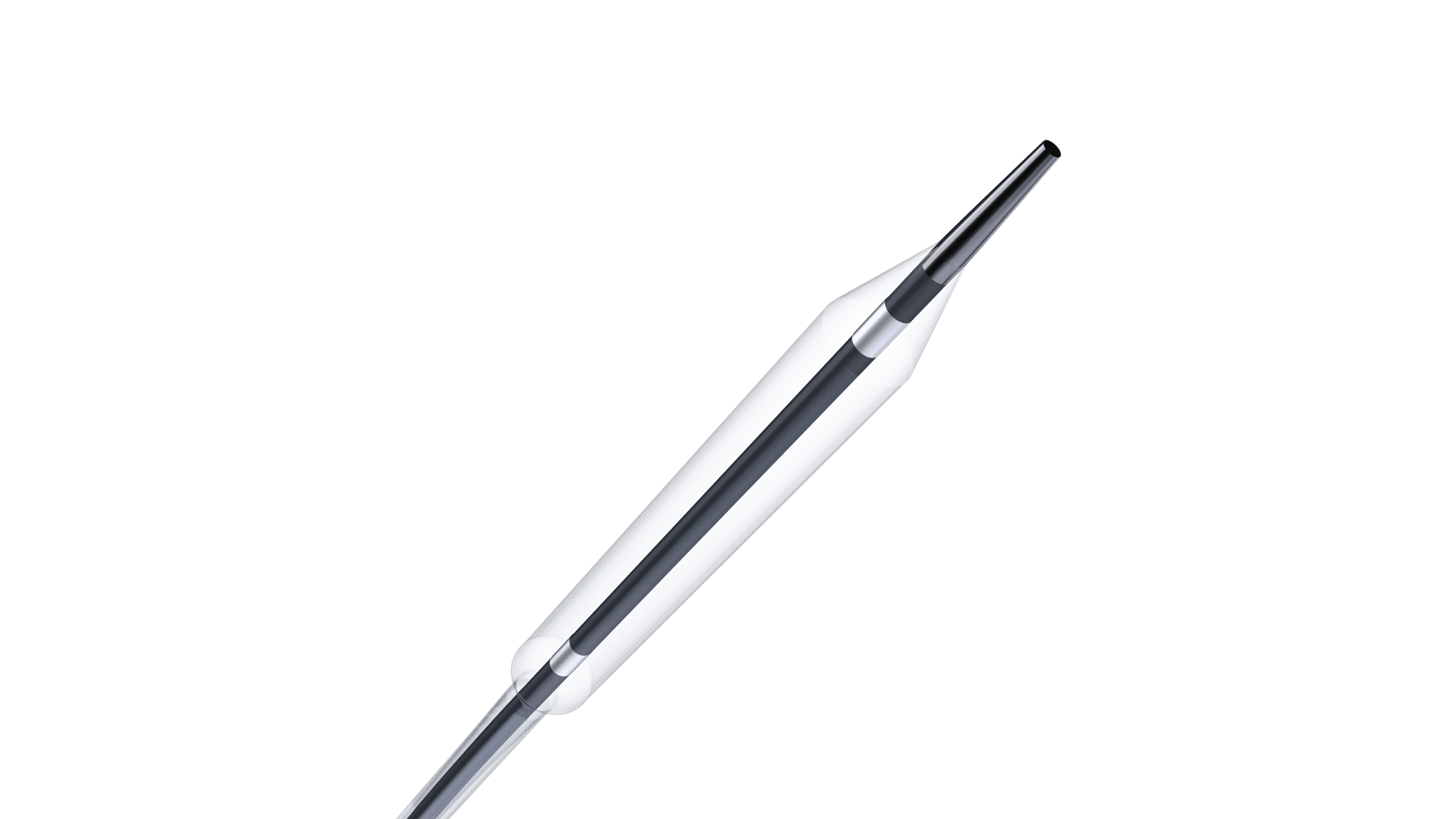

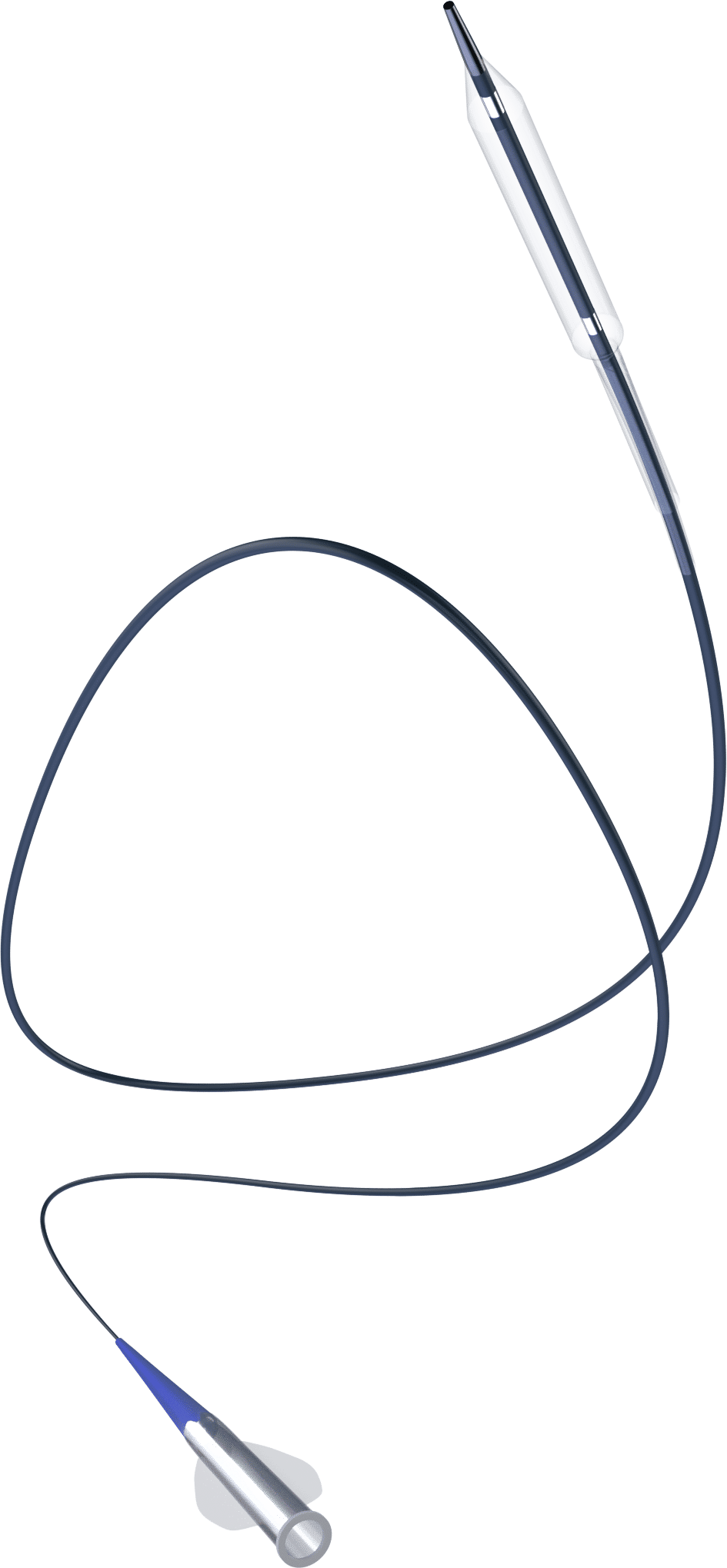

Semi-compliant Balloon Across HP

More than a semi compliant balloon

Product Highlights

0.017"
Entry Profile

5 F
Guiding Catheter compatibility

0.014"
Maximum guidewire size

The semi-compliant ballon with controlled compliance suitable for pre and post dilation of calcified vessel.

The routine won’t be the same with high performances coming from the combined effect of low entry profile, high Rated Burst Pressure up to 20 atm and puncture resistance.

Product Features

_01
Tapered tip

Together with the seamless tip-to-shoulder design allows good trackability and crossability

_02
Double mid marker

Good visibility for precise dilation

_03
Rapid exchange

High pushability given by the shaft design

Technical Drawing

Technical Specifications

Reference	Balloon Diameter	Balloon Length	Marker	Tip Length	Entry Profile	Max. Guidewire	Usable Length	Min. Guide Catheter / ID

150100350	1.5 mm	10 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
150150350	1.5 mm	15 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
150200350	1.5 mm	20 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"

200100350	2.0 mm	10 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
200150350	2.0 mm	15 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
200200350	2.0 mm	20 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"

250100350	2.5 mm	10 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
250150350	2.5 mm	15 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
250200350	2.5 mm	20 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"

300100350	3.0 mm	10 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
300150350	3.0 mm	15 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"
300200350	3.0 mm	20 mm	2	4 mm	0.017"	0.014"	138 cm	5 F / 0.056"

350100350	3.5 mm	10 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"
350150350	3.5 mm	15 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"
350200350	3.5 mm	20 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"

400100350	4.0 mm	10 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"
400150350	4.0 mm	15 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"
400200350	4.0 mm	20 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"

450100350	4.5 mm	10 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"
450150350	4.5 mm	15 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"
450200350	4.5 mm	20 mm	2	2 mm	0.017"	0.014"	138 cm	5 F / 0.056"

Control your Size

The balloon material is a semi-compliant polyamide,
providing a ‘Work Your Size’.

Atm*
Nominal Pressure (NP)
Atm**
Rated Burst Pressure (RBP)
Balloon ⌀	Atm 5	Atm 7	Atm 9	Atm 11	Atm 13	Atm 15	Atm** 17	Atm** 18	Atm** 19	Atm** 20	Atm** 21	Atm 22

1.5 mm	1.40 mm	1.43 mm	1.47 mm	1.50 mm	1.55 mm	1.60 mm	1.65 mm	1.67 mm	1.69 mm	1.71 mm	1.73 mm	1.75 mm
2.0 mm	1.82 mm	1.88 mm	1.94 mm	2.00 mm	2.07 mm	2.13 mm	2.18 mm	2.20 mm	2.22 mm	2.24 mm	2.25 mm	2.29 mm
2.5 mm	2.28 mm	2.34 mm	2.43 mm	2.50 mm	2.57 mm	2.65 mm	2.71 mm	2.74 mm	2.76 mm	2.78 mm	2.79 mm	2.81 mm
3.0 mm	2.65 mm	2.76 mm	2.88 mm	3.00 mm	3.10 mm	3.18 mm	3.24 mm	3.27 mm	3.30 mm	3.33 mm	3.35 mm	n/a
3.5 mm	3.19 mm	3.31 mm	3.44 mm	3.50 mm	3.56 mm	3.62 mm	3.69 mm	3.74 mm	3.79 mm	3.83 mm	n/a	n/a
4.0 mm	3.63 mm	3.71 mm	3.85 mm	4.00 mm	4.09 mm	4.18 mm	4.24 mm	4.28 mm	4.31 mm	4.34 mm	n/a	n/a
4.5 mm	3.98 mm	4.15 mm	4.32 mm	4.50 mm	4.66 mm	4.77 mm	4.87 mm	4.91 mm	4.95 mm	n/a	n/a	n/a
