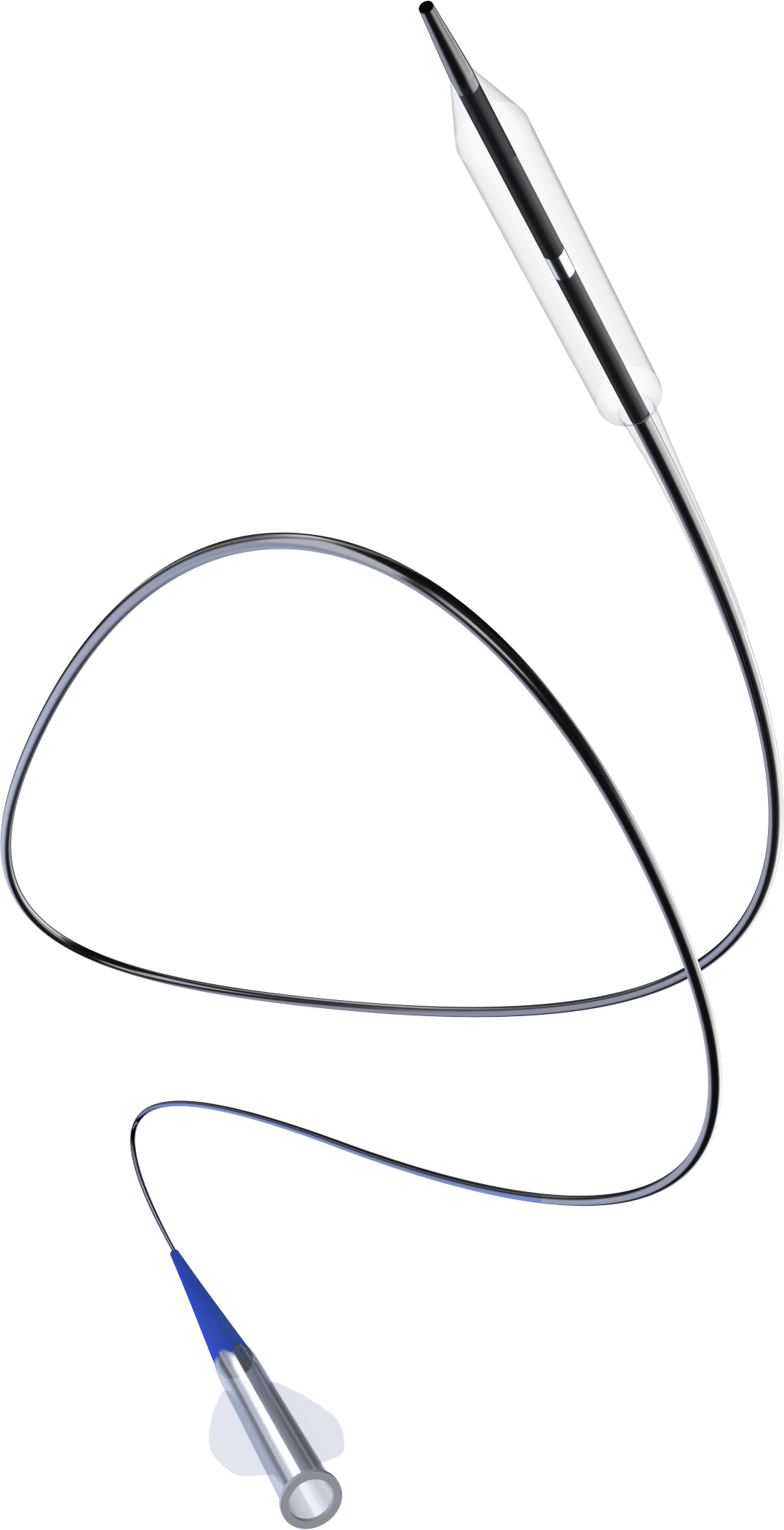

CTO Balloon Across CTO

Reach, Reopen, Restore

Product Highlights

0.016"
Entry Profile

5 F
Guiding Catheter compatibility

0.014"
Maximum guidewire size

Chronic Total Occlusions are the most challenging lesions.

Interventional cardiologists need the right tool to reach the lesion, to cross it with confidence and to restore the blood flow rapidly.

The high Rated Burst Pressure up to 20 atm and the puncture resistance help in the most calcified lesions, even in the circumferential ones.

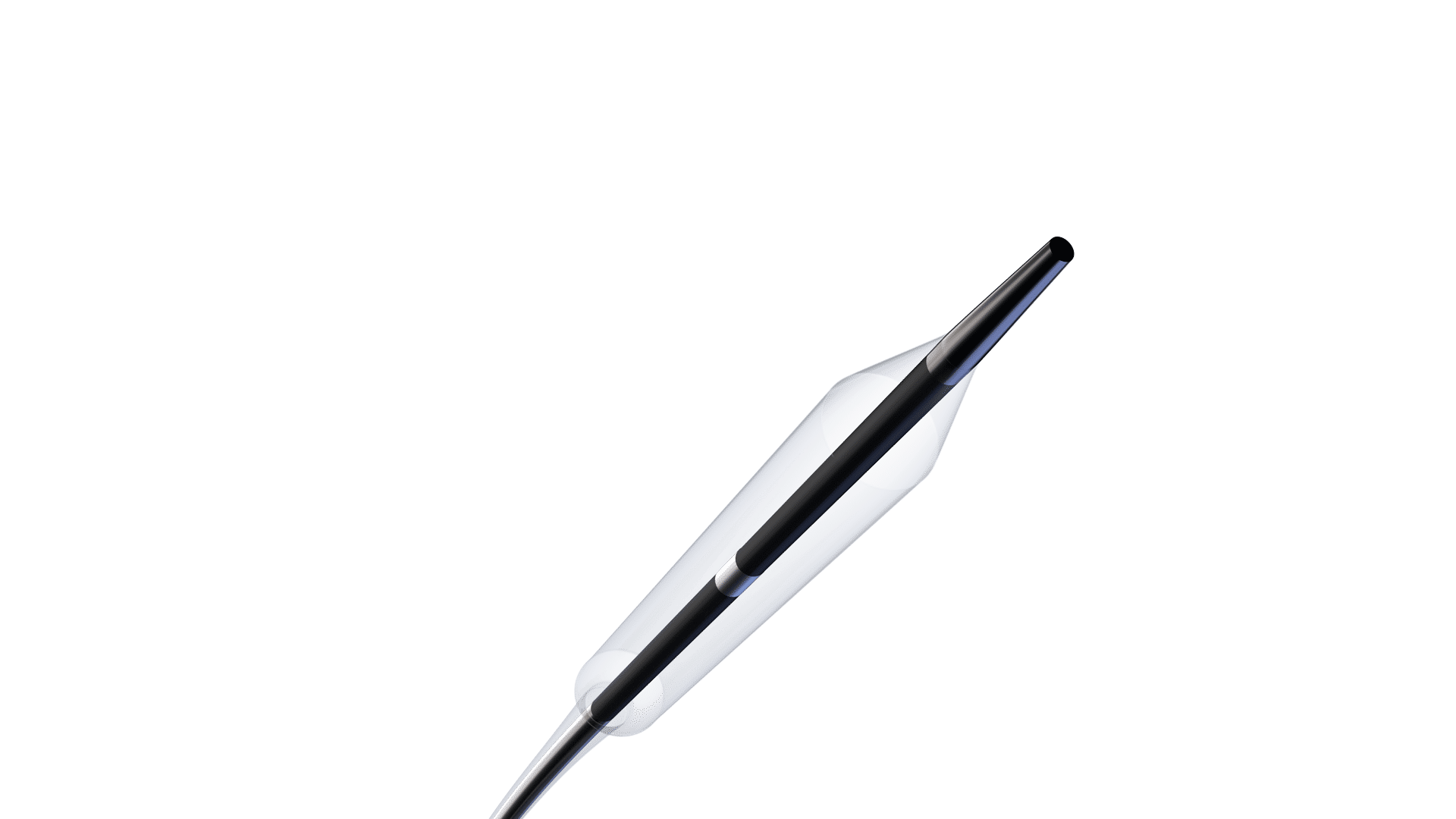

Among the thinnest balloon in the world

Good visibility and crossing profile

High pushability given by the shaft design

Reference	Balloon Diameter	Balloon Length	Marker	Tip Length	Entry Profile	Max. Guidewire	Usable Length	Min. Guide Catheter / ID

110100480	1.1 mm	10 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"
110150480	1.1 mm	15 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"
110200480	1.1 mm	20 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"

150100480	1.5 mm	10 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"
150150480	1.5 mm	15 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"
150200480	1.5 mm	20 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"

200100480	2.0 mm	10 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"
200150480	2.0 mm	15 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"
200200480	2.0 mm	20 mm	1	4 mm	1.016"	0.014"	138 cm	5F / 0.056"

The balloon material is a semi-compliant polyamide,
providing a ‘Work Your Size’.

Atm*
Nominal Pressure (NP)
Atm**
Rated Burst Pressure (RBP)
Balloon ⌀	Atm 5	Atm 7	Atm 9	Atm* 11	Atm 13	Atm 15	Atm** 17	Atm 19	Atm** 20	Atm 21

1.1 mm	1.04 mm	1.10 mm	1.13 mm	1.13 mm	1.20 mm	1.23 mm	1.28 mm	1.38 mm	n.a	n.a
1.5 mm	1.40 mm	1.43 mm	1.47 mm	1.47 mm	1.55 mm	1.60 mm	1.65 mm	1.69 mm	1.71 mm	1.73 mm
2.0 mm	1.82 mm	1.88 mm	1.94 mm	1.94 mm	2.07 mm	2.13 mm	2.18 mm	2.22 mm	2.24 mm	2.25 mm
