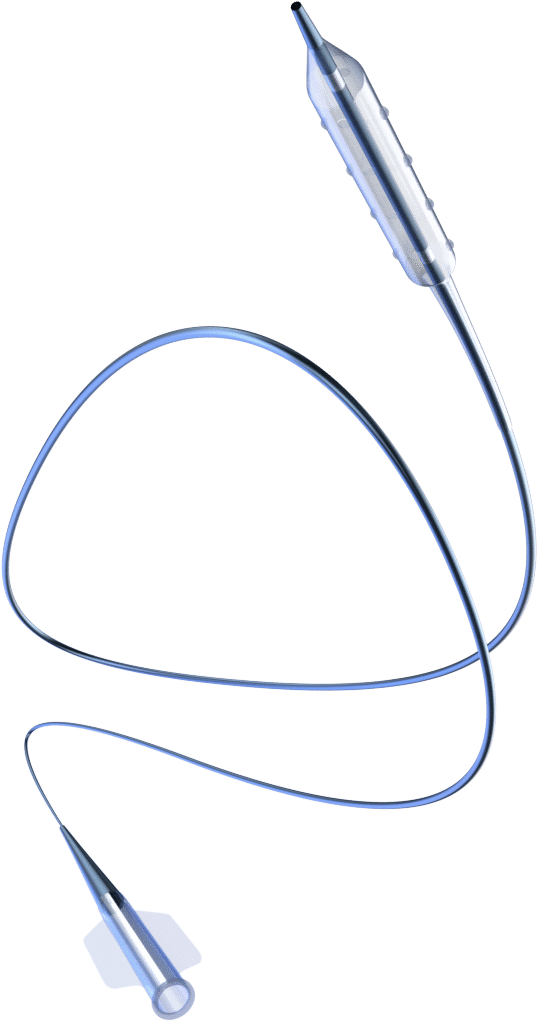

Specialty Balloon Grip TT

Versatility for multiple indications

Product Highlights

0.017"
Entry Profile

5 F
Guiding Catheter Compatibility

0.014"
Maximum Guidewire Size

The original design provides a versatile device for multiple indications and a solution to access untreatable distal lesions.

The debulking action and the stability given by the polymeric knobs prevent the watermelon seeds effect.

The procedure is faster and safer both for patients and interventional cardiologists.

Ultra puncture resistance

High trackability to reach the most distal lesions

High pushability given by the shaft design

Reference	Balloon Diameter	Balloon Length	Marker	Entry Proﬁle	Max. Guidewire	Usable Length	Min. Guide Catheter / ID

250080660	2.5 mm	8 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
250120660	2.5 mm	12 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
250160660	2.5 mm	16 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"

300080660	3.0 mm	8 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
300120660	3.0 mm	12 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
300160660	3.0 mm	16 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"

350080660	3.5 mm	8 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
350120660	3.5 mm	12 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
350160660	3.5 mm	16 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"

400080660	4.0 mm	8 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
400120660	4.0 mm	12 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"
400160660	4.0 mm	16 mm	2	0.017"	0.014"	138 cm	5 F / 0.056"

The balloon material is a semi-compliant polyamide,
providing a ‘Work Your Size’.

Atm*
Nominal Pressure (NP)
Atm**
Rated Burst Pressure (RBP)
Balloon ⌀	Atm 6	Atm 8	Atm 10	Atm* 11	Atm 12	Atm 14	Atm 16	Atm** 18	Atm** 19	Atm** 20	Atm** 21	Atm 22

2.5 mm	2.30 mm	2.37 mm	2.45 mm	2.50 mm	2.54 mm	2.62 mm	2.68 mm	2.73 mm	2.75 mm	2.77 mm	2.79 mm	2.81 mm
3.0 mm	2.76 mm	2.84 mm	2.94 mm	3.00 mm	3.05 mm	3.14 mm	3.22 mm	3.27 mm	3.30 mm	3.33 mm	3.36 mm	3.38 mm
3.5 mm	3.19 mm	3.31 mm	3.44 mm	3.50 mm	3.56 mm	3.67 mm	3.76 mm	3.83 mm	3.87 mm	3.90 mm	3.93 mm	n/a
4.0 mm	3.65 mm	3.78 mm	3.91 mm	4.00 mm	4.07 mm	4.19 mm	4.29 mm	4.37 mm	4.41 mm	4.45 mm	n/a	n/a
